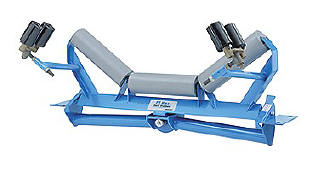

Troughing Idlers

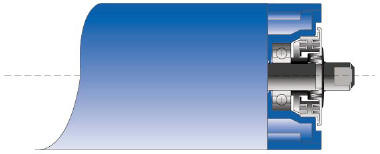

SECTION VIEW THROUGH A ROLLER

ROLLER CONSTRUCTION

1 . TUBING: Welded Steel Tubing to SABS 657 Part lit.
2. SHAFT: Bright Drawn Steel to BS 1970 Part 1 Grade 070 M20 (EN313) cold drawn to required bearing tolerance.
3. WELDING: Welding Is done by the metal insert Gas/Wire Process.
4. ROLLER END: Both ends of Tube is simultaneously machined and chamfered.
5. BEARING: Single Row Deep Groove Ball Bearing - 420205 with C3 clearance.
6. LUBRICATION: Grease Is a Lithium Soap type grease with Rust Inhibitors.
7. SEALING ARRANGEMENT: Grease retaining Inner seal with Multi-stage Labyrinth Seal and Retention Cap with Outboard Rubbing Flinger Seal.
8. Idlers manufactured to SABS Code 1313.
9. Bearings locates between circlips with expansion clearance.

INTRODUCTION TO CONVEYOR IDLERS

Beltcon are suppliers of all types of conveyor idlers supplying major industry, mines and quarries throughout the R.S.A.

PRODUCTS (All to SABS Specification)
Troughing Idlers...........................Trough Training
Impact Idlers..................................Return Training
Disc Return Idlers .........................'V' - Return

IDLERS - STEEL SERIES 25
60 dia. - 88.9 dia. - 101 dia. - 127 dia - 152 dia.

IDLERS - STEEL - NYLON END CAPS SERIES 25
88,9 - 101 dia. - 127 dia. 152 dia. (152 dia. available In Series 30)
Non-standard rolls and frames manufactured to customer specification.

IDLERS - PVC Series 25
125 dia,

IMPACT - DISC RETURNS
105 dia - 133 dia 152 dia
