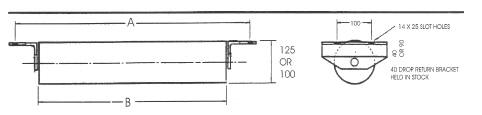

Flat Returns



100 Roll Diameter   127 Roll Diameter
Belt Width A B Mass Kg Belt Width A B Mass Kg
400 634 484 9 400 634 484 11
450 686 536 10 450 686 536 12
500 736 586 11 500 736 586 13
600 838 688 12 600 838 688 14
750 990 840 14 750 990 840 16
900 1144 994 16 900 1144 994 18
1050 1295 1146 18 1050 1295 1146 21
1200 1448 1298 20 1200 1448 1298 23
1350 1600 1450 22 1350 1600 1450 26
1500 1752 1602 24 1500 1752 1602 29
1650 1904 1754 26 1650 1904 1754 32
1800 2058 1908 28 1800 2058 1908 36

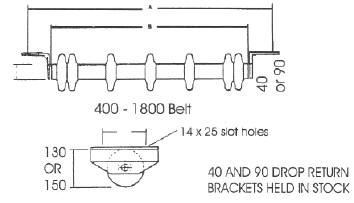

Disc Returns

Belt Width A B Mass Kg
400 634 484 5
450 686 536 5
500 736 586 6
600 838 688 8
750 990 840 10
900 1144 994 11
1050 1295 1146 13
1200 1448 1298 15
1350 1600 1450 16
1500 1752 1602 18
1650 1904 1754 19
1800 2058 1906 21

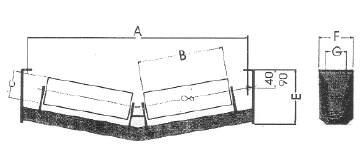

V-Return Idler
Belt Width A B F G Slotted Holes E Mass Ø 102 Mass Ø 127
600 838 300 160 100 14x25 200 21 24
750 990 400 160 100 14x25 200 25 28
900 1144 475 160 100 14x25 200 27 31
1050 1296 560 160 100 14x25 200 30 34
1200 1448 635 160 100 14x25 200 33 37
1350 1600 720 160 100 14x25 200 36 40
1500 1752 800 160 100 14x25 200 38 43
1650 1904 885 160 100 14x25 200 42 47
1800 2058 965 160 100 14x25 200 44 49
2100 2362 1146 240 150 18x30 250 50 56
2400 2668 1296 330 240 18x30 250 56 62
